Carlogavazzi Sensor India


Our product range includes a wide range of inductive proximity sensors, laser photo sensor io link sensor, inductive io link sensor, proximity sensors, carlo gavazzi fa1-p optical fiber amplifier and inductive sensors single loop detector.

REQUEST CALLBACK
Get Best Quote

Approx. 2,000 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
MaterialStainless Steel
Temperature-25 to 80 deg C
DiameterM12, M18, M30
Packaging TypeBox
Output DC200 mA
Sensing Distance4 to 8 mm

CARLO GAVAZZI Inductive Proximity Sensors Since its inception, we are instrumental in offering premium quality . Offered sensors are majorly used for metal object sensing applications. carlogavazzi have special feature like extended range or double sensing range, since the other brand sensors are having a normal sensing range whereas carlogavazzi sensors are the double sensing range in the same diameter.Besides being manufactured from high-grade raw material and latest technology, the offered sensors are inspected properly by our vendor’s. These sensors are used extensively in packaging and plastics machines, assembly lines and conveyor systems. The offered sensors are available with us in various sizes and shapes at affordable price.

Features:
  • Cylindrical housing from 4 to 30 mm
  • Standard and extended sensing distance
  • Flat-pack housing
  • Stainless steel and Polyester housing
  • Flush / Non flush version

Yes! I am interested


Get Best Quote

Approx. 15,000 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
ColorWhite
MaterialPlastic
Usage/ApplicationIndustrial
TypeLaser
Sizerectangle
Supply Voltage10-30 VDC
Frequency Hz50
Number Of Pins4pins
IP RatingIP69K
Voltage230VAC

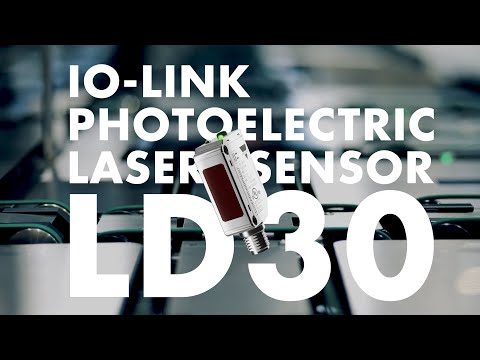

IOLINK laser sensor manufactured by carlogavazzi which consists of IOLINK inductive proximity,IOLINK capacitive sensor, IOLINK photoelectric sensor etc, Long range Background suppression TOF (Time ofFlight) sensor with IO-Link with a adjustable distance of50 to 1.000 mm, either by potentiometer or via IO-Link.• Infrared laser class 1 assure a reliable detection.• Easy customization to specific OEM requests by use ofthe build in IO-Link functionalities.• The output can be operated either as a standardswitching output or in IO-Link mode.

Fully configurable via output IO-Link v 1.1. Electricaloutputs can be configured as PNP / NPN / Push-Pull /External input, normally open or normally closed.• Timer functions can be set, such as ON-delay, Offdelay,and one shots.• Logging functions: Temperatures, detecting counter,power cycles and operating hours.• Detection modes Single point, two point and windowsmode.• Logic functions: AND, OR, XOR and Gated SR-FF.• Analogue output: In IO-Link mode the sensorwill generate 16 bit analogue process data outputrepresenting the distance to the object

Additional Information:
  • Delivery Time: Immediate

Yes! I am interested


REQUEST CALLBACK
Get Best Quote

Approx. 1,900 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
Part NumberICB18
Sensor TypeInductive
Sensing Distance4-30mm
Materialss
Voltage230vac
Diameter5mm,8mm,12mm,18mm
Operating Frequency50hz
Frequency50hz
Detecting Distancecan be adjustable
Control outputnpn/pnp,anaog can be programmable
Usage/Applicationindustrial

IOLINK sensors is used for Data collection is integral to Industry 4.0 and for sensors and actuators, IO-Link sensors is the ideal method to obtain status and diagnostic information from proximity sensors. IO-Link is a universal, open communication standard protocol that allows IO-Link-enabled devices to exchange, collect and analyse data and convert it into actionable information. IO-Link is recognised worldwide as an international standard (IEC 61131-9), and it is today considered as the “USB interface” for sensors and actuators in the industrial automation environment.

When the IO-Link sensor is connected to an IO-Link port, the IO-Link master sends a wake-up request to the sensor, which automatically switches to IO-Link mode, and a point-to-point bidirectional communication automatically starts between the master and the sensor.

IO-Link photoelectric sensors can also be configured to act as regular NPN and PNP sensors - an ideal product for service technicians. Carlo Gavazzi offers IO-Link in our Inductive, Capacitive and Photoelectric Sensors.

Inductive IO-Link sensors are available in M4 to M30 sizes and feature adjustable sensing distance and hysteresis, time delay, RPM monitoring, counting and a temperature alarm. In addition, it can be set up for single point, two point or window mode operation.

Capacitive IO-Link sensors are available in M18 and M30 sizes and feature adjustable sensing distance and hysteresis, time delay, low and high temperature alarm. In addition, it can be set up for single point, two point or window mode operation. Our IO-Link Photoelectric Sensors family consists of our LD30 series which features background suppression with time of flight measurement.

All IO-Link enabled sensors (both Carlo Gavazzi and non-Carlo Gavazzi) can be configured via our SCTL55 hand-held programmer. With the SCTL55 you can configure all of the sensor's parameters without the need for a PC. Furthermore, you can download the IODD files through its built-in Wi-Fi.



Additional Information:
  • Delivery Time: 4-6 weeks

Yes! I am interested


REQUEST CALLBACK
Get Best Quote

Approx. 2,400 / Piece Get Latest Price

Product Details:
BrandCarlo gavazzi
Sensing Distance1mm to 30mm
MaterialStainless Steel
Packaging TypeBox
Material GradeSS 316
Housing typeRectangular and Cylindrical types
Power supply10 to 40 V DC

Carlo Gavazzi Inductive Proximity Sensor With IO-Link Generation. Low Cost Maintenance 80years of Reputed Brand Company

Yes! I am interested


Get Best Quote

Approx. 2,000 / Piece Get Latest Price

Product Brochure
Product Details:
BrandCarlo Gavazzi
Model NumberFA1-P
TypeOptical Fiber Amplifier
Light SourceInfrared LED
InterfaceIO-Link
Switching Frequency55 Hz
Switching OutputNPN
HousingM8
Housing MaterialPlastic
Degree of ProtectionIP40
Operating Temperature-40 to 100 Deg C

FA1 series amplifier is a fiber optic amplifier most suitable to be used with FUR/FUT fibers to achieve various detection distance. FA1 has a 2 x 4 digits LED display to show the signal level and threshold respectively. Display direction can be inverted to suit different installation needs. FA1 is also equipped with a 3-ways adjuster switch to adjust sensitivity and different response time. The sensor output is either NPN or PNP and is selectable to be light on or dark on. There is also a timer for the output which can be selected to be on delay, off delay, on one shot and off one shot to suit most applications’ needs.

Features:
  • Distance range is fiber dependent Please see the FUR, FUT datasheet
  • Easy set-up using 3-ways adjustment switch
  • 2 X 4 digits display to show signal level and threshold
  • Display direction can be inverted to suit different mounting
  • Output 100mA NPN or PNP
  • Light on and dark on switching selectable
  • Operational voltage 12 to 24 VDC
  • On, off, on one shot, off one shot delay timer
  • Response time 200, 500, 1000, 5000µS

Yes! I am interested


Get Best Quote

Approx. 5,343 / Piece Get Latest Price

Product Brochure
Product Details:
Frequency Range13 - 120 kHz
BrandCarlo Gavazzi
Output1A/250 VAC
ColorWhite
Rated operational voltage24 VAC/DC, 115 VAC or 230 VAC
Rated Operational Power3 VA
Delay on OperateLess Than 10 sec Typ. 4 sec
Outputs Minimum Switching Current10 mA @ 12 V
Outputs Rated Insulation Voltage250 VAC (rms) (cont./elec.)
Operating Frequency1 Hz
Response Time400 mS
Weight150 gm
Operating Temperature-20 deg to +70 deg C (-4 deg to + 158 deg F)
Storage Temperature-50 deg to +85 deg C (-58 deg to +185 deg F)

Loop detectors for detection of vehicles. The vehicle loop detector is designed to handle all parking, drive-through and access control applications for controlling doors, gates, barriers or fences. The principle is based on a change in the inductance within the loop when a metallic object (vehicles) is passing. The microprocessor evaluates the changes.

Features:
  • Single loop detector
  • Automatically adjustment of detection level
  • Manual sensitivity for compensations of variations
  • Easy installation via 11 pin circular plug
  • Pulse or presence relay output
  • Output 1A/250 VAC SPDT relay
  • LED indication for power, relay status and loop fault
  • Sensitivity boost – only LDP1
  • Selectable frequency – prevents cross-talk.

Yes! I am interested


Get Best Quote

Approx. 2,300 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
Sensing Distance1 to 30 mm
Frequency2 KHz
Supply Voltage90-230 VAC
Rated Operational Voltage20-250 V / AC
Operated Frequency50 Hz
Adjustable Sensing Distance3-12 mm
Supply on Response Delay100 m sec

Our in-depth knowledge and industrial expertise enable us to offer a distinguished range of Carlo Gavazzi India Inductive Proximity Sensor. Our vendor’s manufacture this sensor by making use of high-grade raw material and high-end technology so as to maintain the set industry standards. To make a flawless dispatch from our end, our offered sensor is rigorously inspected by our quality inspectors against various parameters. This sensor is broadly acknowledged by our clients for its easy usage and sturdiness.

Features:
  • Innovative design
  • High performance
  • Longer service life

Carlogavazzi Switch:

  • Solid state relays
  • Solid state accessories
  • soft starters
  • Motor protection relays
  • Electromechanical relays


Carlogavazzi Control:

  • Monitoring relays
  • Timers
  • current transformers
  • Digital Panel meters
  • Energy Management
  • Energy monitoring Solution
  • PV monitoring solution
  • PID controllers
  • Switching power supplies
  • Safety modules


Carlogavazzi Fieldbus:

  • Dupline general purpose
  • Dupline safe
  • Dupline irrigation
  • Dupline elevator
  • Dupline parking guidance system
  • Dupline home and building automation

Yes! I am interested


  • +9
Get Best Quote

Approx. 850 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
Sensing Distance1 to 30 mm
Usage/ApplicationPosition Sensor
Protection CircuitSurge Absorbing Circuit
Operating Voltage90-250 VAC
Operating Humidity35% - 95% RH
Protection ClassIP - 67
Power ripple50/60Hz
Output current100 mA max
Current consumption2.0 mA max.
Residual VoltageGreater Than 15 V
Leakage CurrentGreater Than 4.0 mA

We have gained recognition as an eminent enterprise, devotedly engaged in offering a broad range of Inductive Proximity Sensor. It has 8 mm dia, 12 mm dia, 18 mm dia, 30 mm dia models with their respective sensing distance. Backed by a team of experts, this sensor is manufactured using high grade components and advance technology. Our offered sensor is precision-designed, in order to meet the industry standards. Furthermore, this sensor is available in various technical specifications, as per the varied needs of our valuable clients. Our range is stringently tested on various parameters to assure it on counts of quality.

Features:
  • Rugged construction
  • Require less maintenance
  • Easy installation

Yes! I am interested


Get Best Quote

Approx. 2,500 / Piece Get Latest Price

Product Details:
BrandCarlo Gavazzi
OutputDC 200 mA
Sensing distance8 to 22 mm
Operational Voltage10-40 VDC
ConnectionPlug or 2 m PVC cable
MountingFlush
MaterialNickel-Plated brass
Operating Temperature Cable Version-25 to 70 deg C (-13 to +158 deg F)
Operating Temperature Plug Version-40 to +70 deg C (-40 to +158 deg F)

Carlo Gavazzi Proximity Sensor and its Being a client-centric organization, we are engaged in offering a distinct collection of  . Our vendor’s professionals manufacture this sensor using well-tested raw material and sophisticated technology. In addition to this, our offered sensor is rigorously tested by our quality controllers against diverse parameters in order to deliver a defect-free range at clients end.

Moreover, the offered carlogavazzi IOLINK sensor is extensively appreciated by our clients for featuring variegated attributes like easy installation and durability.

Features:
  • Flush and non-flush types
  • Long and short body
  • Normally open /Normally closed function
  • LED-indication
  • Protection: reverse polarity, short circuit, transients
  • Cable and plug versions

Yes! I am interested


REQUEST CALLBACK
Get Best Quote

Approx. 520 / Piece Get Latest Price

Product Details:
Sensing Distance5.0 mm
brandFotek
Output MethodNPN
Mounting MethodFlushed
Sensing DirectionHorizontal
Operating Voltage10~30 VDC
Response Frequency800 Hz

A family of inductive proximity switches in industrial standard Plastic housings. They are able to handle applications where high sensing range is requested. Output is open collector NPN or PNP transistors


Yes! I am interested


  • +7
Get Best Quote

Approx. 1,900 / Piece Get Latest Price

Product Details:
Sensing Distance1.5 or 2.5 mm
BrandCarlo Gavazzi
Protection ClassIP - 67
Power supply10 to 30 VDC
Rated Operating Distance1.5 mm
Rated Operational Volt10 to 30 VDC
Voltage DropLess Than 2,5 V
Frequency of operating cycles2000 Hz
Repeat AccuracyLess Than or Equal 5%
Effective operating Distance0.9 x Sn Less Than or Equal Sr Less Than or Equal 1.1 x Sn

Inductive proximity sensor with long body. Output configuration for NPN/PNP with both NO and NC types as standard. M8 stainless steel housing with 2 m PVC cable or M8/M12 plug.

Features:
  • Miniature stainless steel housing (cable or M8/M12 plug)
  • Long body
  • Output: Transistor NPN/PNP, make or break switching
  • Protection: Short-circuit
  • LED-indication for output ON
  • 2 m PVC cable, M8 or M12 plug

    Yes! I am interested


    Get Best Quote

    Approx. 2,500 / Piece Get Latest Price

    Product Details:
    BrandCarlo Gavazzi
    DiameterM12
    Switching Frequencyup to 2000 Hz
    ConnectionCable / Plug
    Sensing Distance2 mm up to 40 m
    Sensor life timeLonger
    FlushQuasi-flush and Non-flush
    Operating Distance2 to 10 mm
    OutputNPN-PNP

    Our organization has successfully expanded its business in market owing to the offered elevated quality array of Carlo Gavazzi Inductive Proximity Sensor. The offered products are designed and manufactured utilizing best quality raw-material and the latest technology. Moreover, a team of our quality controllers conducts a series of quality tests on the entire array to seek out any possible defect. In tune with industry standard, we provide the entire range in different customized options and industry leading prices.

    Features:

    • Superior performance
    • Sturdy structure
    • Durability

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 2,000 / Piece Get Latest Price

    Product Details:
    Sensing Distance50-2200 mm
    BrandCarlo Gavazzi
    Protection DegreeIP 67
    Weight98 g
    Model NoUA18CAD
    Beam Angle+/-7 deg or +/-8 deg
    Repeatability0.5%
    Power Supply15 to 30 VDC
    Operating Ambient Temperature-20 deg to +60 deg C (-4 deg to +140 deg F)
    Storage Ambient Temperature-35 deg to +70 deg C (-31 deg to +140 deg F)

    Carlogavazzi Ultrasonic sensor is a self-contained multi function diffuse ultrasonic sensor with a sensing range of 50 to 2200 mm in three ranges. 2 switching outputs - easely set up for two different output modes and adjusted by teach-in and makes it ideal for level control tasks in a wide variety of vessels. A sturdy one-piece polyester housing provides the perfect packaging for the sophisticated microprocessor controlled and digitally filtered sensor electronics.

    Excellent EMC performance and precision are typical features of this carlogavazzi sensor on true distance measurement and available in IOLINK version.

    Features:
    • Cylindrical M18 PBT housing
    • Outputs: Two multi function switching outputs. PNP or NPN, NO or NC
    • Setup: Normal switching or adjustable hysteresis
    • Protection: Short-circuit, reverse polarity and overvoltage
    • 2 m cable or M12 plug

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 2,500 / Piece Get Latest Price

    Product Details:
    HysteresisLess Than 10%
    BrandCarlo Gavazzi
    Sensing Distance1 to 30 mm
    Operating Temperature-25 To +70 Degree C
    Frequency30 Hz
    Power Supply10 to 40 VDC
    DiameterM12 - M30

    Sensors we deals with carlogavazzi and fotek. carlo gavazzi and fotek are the reputed make and accpeted by all over the world for its standardization. carlo gavazzi sensors have diffrent types proximity sensor,capacitive sensors, inductive sensor, photoelectric sensor, ultrasonic sensor, fibreoptic sensor, mark sensor, light curtain etc. Carlogavazzi india other than sensors, we have relays, ssr, EMR, loop detector, energy meter, Temperature controller, power regulator, smps, LED driver, power supply, monitoing relays etc.


    Yes! I am interested


    • +5
    Get Best Quote

    Approx. 3,465 / Piece Get Latest Price

    Product Details:
    BrandCarlo Gavazzi
    Sensing Distance30 mm
    Supply Voltage10 to 30 V DC
    ColorWhite
    Operated Frequency50 Hz
    Rated Operational Voltage20-250 V / AC
    Supply on Response Delay100 m sec
    Adjustable Sensing Distance3-12 mm

    Manufacturer & exporter of Fotek capacitive sensors in india distributor, importer, dealer, supplier for india. Fotek capacitive sensors are used as level sensor, conveyor applications, hopper sensor etc. Fotek India Inductive Proximity sensors, proximity sensor, capacitive proximity, Photo sensors, Level sensor, light curtain,photoelectric sensor, Thyristor, Solid state relay(SSR), Temperature controller, power regulator, etc. with this products we are supporting the customers in better aspects all over India.

    Product Range:

    Type

    M30

    Model

    CP30-50C

    CP30-50CB

    CP30-50S

    CP30-50SB

    Sensing Distance

    30.0mm

    Operating Voltage

    10~30VDC

    90~250 VAC

    Current Consumption

    1.5VA max.

    Response Frequency

    15Hz

    Output Method

    NPN/PNP

    NPN/PNP

    SCR

    SCR

    Output Status

    NO

    NC

    NO

    NC

    Output Current

    100mA

    Leakage Current

    2.0mA

    Sensitivity Adjuster

    14 Turns trimmer

    Operating Temp./Hum.

    -20°C~ 60°C35%~95% RH

    Protection Class

    IP-66

    Housing Material

    Cu Plated Ni


    Yes! I am interested


    • +5
    Get Best Quote

    Approx. 2,500 / Piece Get Latest Price

    Product Details:
    BrandCarlo Gavazzi
    Sensing Distance30 mm
    ColorWhite
    IP RatingIP67
    Diameter34 mm
    HousingsPlastic and Metal

    We sree dhanam automation pvt ltd is the authorized distributor for Carlo Gavazzi, fotek, meanwell in India. Carlogavazzi India capacitive sensors are used for non-metallic sensing objects and also used in several applications like level sensor,oil level sensor etc. our capacitive proximity sensor in carlogavazzi and fotek are in both metal case and plastic case. We are dealing wide range of other products apart from capacitive sensors like capacitive sensors, Inductive Proximity sensors, Photo sensors, Level sensor, loop detector, ultrasonic sensors, Temperature controller, power regulator, light curtain Solid state relay (SSR), Electro mechanical relays (EMR), current monitoring relay, Voltage monitoring relay, smps etc., supporting the customers in better aspects all over india.

    Features:

    • Proximity and level sensors
    • Plastic and metal housings
    • Featuring Tripleshield ™ sensor protection
    • AC and DC outputs
    • Either a built-in cable or a connector


    Applications:

    • Carlo Gavazzi's patented Tripleshield ™ Capacitive Sensors have become the standard all other manufacturers are measured against. All Tripleshield sensors are tested to withstand electrostatic discharges up to 40 KV, line transients up to 4 KV, and airborne noise (ie. cellular phones) up to 15 V/m. Furthermore, some models have built-in humidity compensation. Capacitive sensors will detect most materials - conductive and non-conductive. This makes them ideal for level detection in raw plastic delivery systems and in agricultural applications.

    Yes! I am interested


    REQUEST CALLBACK
    • +5
    Get Best Quote

    Approx. 4,500 / Piece Get Latest Price

    Product Details:
    Frequency50Hz
    Voltage10-30 VA DC
    Degree Of ProtectionIP-66
    Housing MaterialIntensive Polyamide
    Response TimeDC Type- 2ms; AC Type- 10ms
    Operating Temperature-20 deg C ~ +60 deg C

    Carlo Gavazzi's photoelectric sensors are extensively used in all industrial markets to detect the position/presence of moving parts and to monitor rotational speed. The ICB and ICS latest generation families, built to the highest-quality standards, provide a durable solution in any harsh environment. In addition to several configurations available, they can be customized to any specific OEM applications.

    Yes! I am interested


    REQUEST CALLBACK
    • +4
    Get Best Quote

    Approx. 2,400 / Piece Get Latest Price

    Product Details:
    Sensing Distance30 mm
    ColorWhite
    Body StyleCylindrical
    Operating Temperature-40 to 105 Deg C
    IP RatingIP67
    Diameter34 mm
    Housings MaterialPlastic and Metal

    Capacitive Proximity Sensors,We have emerged as a leading organization, engaged in offering superior quality  that widely used in non-metallic sensing applications, even now we have IOLINK sensors in capactive proximity. Our vendor’s manufacture these sensors by making use of high-grade raw material and high-end technology so as to maintain the set industry standards. To make a flawless dispatch from our end, our offered sensors are rigorously inspected by our quality inspectors against various parameters. These sensors are broadly acknowledged by our clients for their light weight and sturdiness.

    Features:
    • Capacitive Proximity and level sensors
    • Plastic and metal housings
    • Featuring Tripleshield ™ sensor protection
    • AC and DC outputs
    • Either a built-in cable or a connector
    • IOLINK enabled

    Yes! I am interested


    Get Best Quote

    Approx. 1,800 / Piece Get Latest Price

    Product Brochure
    Product Details:
    BrandCarlo Gavazzi
    Supply Voltage10 to 30 VDC
    Range60 mm
    Output100 mA
    Housing Dimensions12 x 32 x 20 mm (W x H x D)
    Blind ZoneLess Than or Equal 25 mm
    Laser Protection ClassClass 2 - according to EN60825-1-3/97
    Average PowerLess Than 1 mW
    Operating Frequency1000 Hz
    Rated Insulation Voltage500 VAC

    LD32 photoelectric sensor family is available in a compact 12 x 32 x 20 mm reinforced PMMA/ABS-housing. These photo sensors are useful in applications where high accuracy detection as well as small size is required. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The small spot and background suppression makes the sensor able to detect small objects close to the background. The output type is preset (NPN or PNP), and the output switching function is programmable (NO or NC). now this sensors available in IOLINK version

    Features:
    • Miniature sensor range
    • Range: 60 mm
    • Sensitivity adjustment by Teach-In programming
    • Modulated, red laser light, 650 nm (class 2)
    • Supply voltage: 10 to 30 VDC
    • Output: 100 mA, NPN or PNP preset
    • Make and break switching function programmable
    • LED for output indication, signal stability and power ON
    • Protection: reverse polarity, short circuit and transients
    • Cable and plug versions
    • Compact housing
    • Excellent EMC performance

    Yes! I am interested


    Get Best Quote

    Approx. 5,343 / Piece Get Latest Price

    Product Brochure
    Product Details:
    Frequency Range13 - 120 kHz
    BrandCarlo Gavazzi
    Model NoLDP1SA1BM24
    Operating Frequency1 Hz
    Response Time400 mS
    Operating Temperature-40 deg to +70 deg C (-40 deg to + 158 deg F)
    Storage Temperature-50 deg to +85 deg C (-58 deg to +185 deg F)

    Loop detectors for detection of vehicles. The vehicle loop detector is designed to handle all parking, drive-through and access control applications for controlling doors, gates, barriers or fences. The principle is based on a change in the inductance within the loop when a metallic object (vehicles) is passing. The microprocessor evaluates the changes.

    Features:
    • Single or Dual loop detector
    • Automatically adjustment of detection level
    • Manual sensitivity for compensations of variations
    • Easy installation via 11 pin circular plug
    • Pulse or presence relay output
    • Output 1A/250 VAC SPDT relay
    • LED indication for power, relay status and loop fault
    • Sensitivity boost – only LDP1
    • Selectable frequency – prevents cross-talk
    • Direction logic – only LDP2

    Yes! I am interested


    Get Best Quote

    Approx. 6,458 / Piece Get Latest Price

    Product Brochure
    Product Details:
    Minimum Order Quantity1 Piece
    Frequency Range10 - 130 kHz
    BrandCarlo Gavazzi
    Model NoLDP1PA2DU24
    Adjustable Sensitivity0.01%- 1.00%
    Response Time130 ms
    Rated Insulation Voltage800 V
    Mechanical Lifetime15 x 106 inch

    LDP loop detector is well suited to be used in parking, drive through and car access control applications to control barriers, gates, bollards and car access equipment. Automatic frequency tuning and easy sensitivity adjustment enable easy setup and installation. Automatic sensitivity boost ensures high bed vehicles are detected reliably. Multicolor LED indication enables user to easily adjust loop inductance and intuitively indicate installation issues for easy diagnostic. Individually user-assigned relay mode for 2 x SPDT outputs enables easy adaptation to many applications. Directional logic in dual loop model can be used to ascertain vehicle direction.

    Main Features:
    • Loop input inductance: 20 μH to 1000 μH
    • Adjustable sensitivity in 10 steps: 0.01% to 1.00% via potentiometer
    • Automatic loop frequency tuning or manual tuning via 4 adjustable loop frequency channels to avoid crosstalk
    • Automatic Sensitivity Boost (ASB) for high bed vehicle detection
    • Selectable fail safe and fail secure mode
    • 2 x SPDT relay outputs, selectable operation as pulse or presence switching
    • Multicolor power/fault LED indication for easy setup and intuitive diagnostic
    • Individual loop state multicolor LED to indicate different loop status and fault.
    • Loop diagnostic capability: loop short circuit, loop open circuit, inductance out of range, channel crosstalk.
    • Directional logic for dual loop.

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 1,810 / Piece Get Latest Price

    Product Details:
    BrandCarlo Gavazzi
    Part NumberCD50CNF06NO
    Switching ModeNO
    Sensing Distance4 mm
    Output TypeNPN
    Sensor Typeproximity
    MaterialPlastic
    Supply Voltage10 to 30 V DC
    Switching Frequency50hz
    Usage/ApplicationIndustrial
    Standard sensing objectmetal
    Connection TypeCable
    Number of Wires3 Wire
    Body MaterialStainless Steel
    Body StyleRectangular
    InstallationFlush
    Degree of ProtectionIP69K
    Operating Temperature-25 to 70 Deg C

    Capacitive level detectors. 3-wire DC sensors with open collector NPN or PNP transistor output. carlogavazzi sensors is available in a 5 VDC version and a 10-30 VDC version. The sensing distance is fixed and works through a nonmetallic wall of up to 20 mm of thickness.

    Capacitive level detectors,carlogavazzi has 3-wire DC sensors with open collector NPN or PNP transistor output. The sensors is available in a 5 VDC version and a 10-30 VDC version. The sensing distance is fixed and works through a nonmetallic wall of up to 20 mm of thickness.

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 1,900 / Piece Get Latest Price

    Product Details:
    Current Consumption25mA max
    Sensitivity Adjuster270 deg C Trimmer
    Sensing Distance30 cm
    Sensing DirectionHorizontal
    Model NoCDR-30X
    Operating Voltage10~30 V DC
    Output MethodNPN & PNP 150mA max

    Being a client-centric organization, we are engaged in offering a distinct collection of CDR-30X Photoelectric Sensor. Our vendor’s professionals manufacture this sensor using well-tested raw-material and sophisticated technology. In addition to this, our offered sensor is rigorously tested by our quality controllers against diverse parameters in order to deliver a defect-free range at clients end. Moreover, the offered sensor is appreciated by our clients for featuring variegated attributes like optimum quality and durability.

    Features:
    • Superior performance
    • Optimum finish standard
    • Non corrosive

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 2,000 / Piece Get Latest Price

    Product Details:
    MaterialStainless Steel
    Supply Voltage230VAC
    HousingCylindrical Thread M18
    ApprovalsUL
    Model NumberICB12
    InterfaceIO-Link
    Sensing Distance30 cm
    Switching OutputNPN/PNP
    Contact OutputNO
    Operating Temperature Range-40 Deg C To +60 Deg C
    Degree of ProtectionIP67
    Range3 m to < 10 m
    ConnectionCable 3 Wire
    Current Consumption20mA max
    Sensitivity Adjuster250 deg C Trimmer
    Sensing DirectionHorizontal
    Operating Voltage10~30 V DC
    Output MethodNPN & PNP 150mA max

    Fotek Photoelectric Sensor Being a client-centric organization, we are engaged in offering a distinct collection of . Our vendor’s professionals manufacture this sensor using well-tested raw-material and sophisticated technology. In addition to this, our offered sensor is rigorously tested by our quality controllers against diverse parameters in order to deliver a defect-free range at clients end. Moreover, the offered sensor is appreciated by our clients for featuring variegated attributes like optimum quality and durability.

    Features:
    • Superior performance
    • Optimum finish standard
    • Non corrosive

    Yes! I am interested


    Get Best Quote

    Approx. 1,649 / Piece Get Latest Price

    Product Details:
    Switching ModeNO
    Sensing Distance8 - 35 mm
    Output TypePNP
    BrandFotek
    Supply Voltage10 to 30 V DC
    Connection TypeCable
    Number of Wires3 Wire
    Body MaterialStainless Steel
    Body StyleCylindrical
    InstallationFlush
    Operating Temperature-25 to 70 Deg C
    Length1-2 meter
    Current Rating500 mA
    Protection DegreeIP67

    Fotek Capacitive Sensors We are dedicatedly engaged in offering a commendable range of Besides being manufactured from high-grade raw-material and latest technology, the offered sensors are inspected properly by our vendor’s professionals. Owing to features like durability and sturdiness, the offered sensors are exceptionally valued by our precious clients. The offered sensors are available with us in various specifications at affordable price.

    Features:
    • Sturdy structure
    • Durability
    • Low maintenance

    Yes! I am interested


    Get Best Quote

    Approx. 6,458 / Piece Get Latest Price

    Product Details:
    Frequency Range10 - 100 kHz
    Operating Frequency1 Hz
    Response Time300 mS
    Operating Temperature-40 deg to +70 deg C (-40 deg to + 158 deg F)
    Storage Temperature-50 deg to +85 deg C (-58 deg to +185 deg F)
    Packaging TypeBox

    Our organization has successfully expanded its business in market owing to the offered elevated quality array of Loop Detector. The offered detector is manufactured utilizing superior quality raw-material and the latest technology. Moreover, a team of our quality controllers conducts a series of quality tests on the entire range to seek out any possible defect. In tune with industry standard, we provide the entire range in various customized options and industry leading prices.

    Features:
    • Single or Dual loop detector
    • Automatically adjustment of detection level
    • Manual sensitivity for compensations of variations
    • Easy installation via 11 pin circular plug
    • Pulse or presence relay output
    • Output 1A/250 VAC SPDT relay
    • LED indication for power, relay status and loop fault
    • Sensitivity boost only LDP1
    • Selectable frequency prevents cross-talk
    • Direction logic only LDP2

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 5,453 / Number Get Latest Price

    Product Details:
    Frequency Range13 - 120 kHz
    Output Voltage1A/250 VAC
    Rated operational voltage24 VAC/DC, 115 VAC or 230 VAC
    Rated Operational Power3 VA
    Outputs Minimum Switching Current10 mA @ 12 V
    Weight150 gm
    Operating Temperature-20 deg to +70 deg C (-4 deg to + 158 deg F)
    Storage Temperature-50 deg to +85 deg C (-58 deg to +185 deg F)

    Carlo Gavazzi's loop detector for vehicle detection continues our tradition of providing superior sensing technology and solutions for the door and entrance control market. The pulse mode relay can be configured to be activated when a vehicle enters or leaves the loop. The output signal is useful for controlling all kinds of doors, shutters, swing gates and sliding gates etc.

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 6,458 / Number Get Latest Price

    Product Details:
    Frequency Range10 - 110 kHz
    Adjustable Sensitivity0.01%- 1.00%
    Response Time130 ms
    Rated Insulation Voltage800 V
    Mechanical Lifetime15 x 106 inch
    Packaging TypeBox

    Price may vary as per application/specification and quantity.

    We are instrumental in providing our clients a comprehensive range of Vehicle Loop Detector that is mainly used for vehicle sensing and automatic gate applications.This detector is meticulously tested on various quality parameters by our vendor’s adept professionals. Provided detector is manufactured by utilizing optimum quality raw-material and the latest technology by our experts. In line with industry standard, we provide this detector in various customized options and at affordable prices.


    Features:

    • Single or Dual loop detector
    • Automatically adjustment of detection level
    • Manual sensitivity for compensations of variations
    • Easy installation via 11 pin circular plug
    • Rated operational voltage: 24 VAC/DC, 115 VAC or 30 VAC
    • Pulse or presence relay output
    • Output 1A/250 VAC SPDT relay
    • LED indication for power, relay status and loop fault
    • Sensitivity boost – only LDP1
    • Selectable frequency – prevents cross-talk
    • Direction logic – only LDP2

    Yes! I am interested


    REQUEST CALLBACK
    Get Best Quote

    Approx. 2,500 / Piece Get Latest Price

    Product Brochure
    Product Details:
    BrandCarlo Gavazzi
    Model NoVN3
    Housing MaterialNylon
    Electrodes MaterialStainless Steel
    Length50-100 mm
    Diameter4-5 mm
    Degree of ProtectionIP 67
    Operating temperature0 to 90 deg C (32 deg to 194 deg F)
    Storage Temperature-25 deg to 100 deg C (-13 deg to 212 deg F)
    Pressure10 bar at 60 deg C, 2 bar at 60 deg C

    Level sensor for measuring the level of conductive liquids, i.e. max./min. control of charging or discharging. The function is determined by the amplifier relay used. The sensors are delivered with standard length electrodes - these are cut off to suit the application.

    Features:
    • 1 to 4 electrodes
    • Isolated or unisolated electrodes
    • Cable or screw connection
    • 1/2”, 1” or 1 1/2” without pipe thread according to ISO 228/1-Gxxx”

    Yes! I am interested


    Get Best Quote

    Approx. 2,300 / Piece Get Latest Price

    Product Details:
    BrandCarlo gavazzi
    Supply Voltage10 to 30 VDC
    Housing MaterialABS
    Range150 mm
    Model NoPD30CNB15NPRT
    Blind Zone30 mm
    Sensing Angle+/- 2 deg
    Ambient Light10,000 lux
    Light Spot110 mm @ 1.5 m
    Minimum Operational Current0.5 mA
    Operating Frequency1000 Hz
    Rated Insulation Voltage500 VAC

    The PD30CNB15 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing. The sensors are useful in applications where high-accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio. The Teach-In function for adjustment of the sensitivity makes the sensors highly flexible. The output type is preset (NPN or PNP), and the output switching function is NO or NC output. A remote teach feature allow the sensor to be set up from e.g. a PLC.

    Features:

    • Miniature sensor range
    • Sensitivity adjustment by Teach-In programming
    • Modulated, red light 660 nm
    • Output: 100 mA, NPN or PNP preset
    • Make or break switching function programmable
    • LED indication for output, stability and power ON
    • Protection: reverse polarity, short circuit and transients
    • Cable and plug versions
    • Excellent EMC performance
    • Remote teach features




    Yes! I am interested









    Corporate Brochure








    Send SMS
    Sugumar Krishnasamy  (CEO)
    Sree Dhanam Automation Private Limited
    Plot No. 2, 40 Feet Road, Hindustan Motor Nagar Kallikuppam
    Ambattur, Chennai - 600053 , Tamil Nadu , India
    Send E-mail
    Share Us:
    X
